Key-value and cache

Redis

Redis opens in a native key browser with type-aware results, console mode, Redis Stack capability gates, live guarded key edits, and file import/export workflows.

Available12 minDesktop

Prerequisites

  • Install the current DataPad++ desktop pre-release on Windows, macOS, or Linux.
  • Have the endpoint, database file, or cloud account details for a Redis datastore you are authorized to use. Start with least-privileged, read-only access.
  • Keep an independent backup before enabling edits, administration, restore, or transfer execution.

Connect and run a safe query

  1. 1

    Create the connection

    Open Library, choose Create connection, and select Redis and a supported Connection method tab.

  2. 2

    Test and save

    Complete the applicable fields and enable Read-only connection. Test connection when available; new local files and pending secondary credential changes must be saved first. Review runtime limitations and warnings.

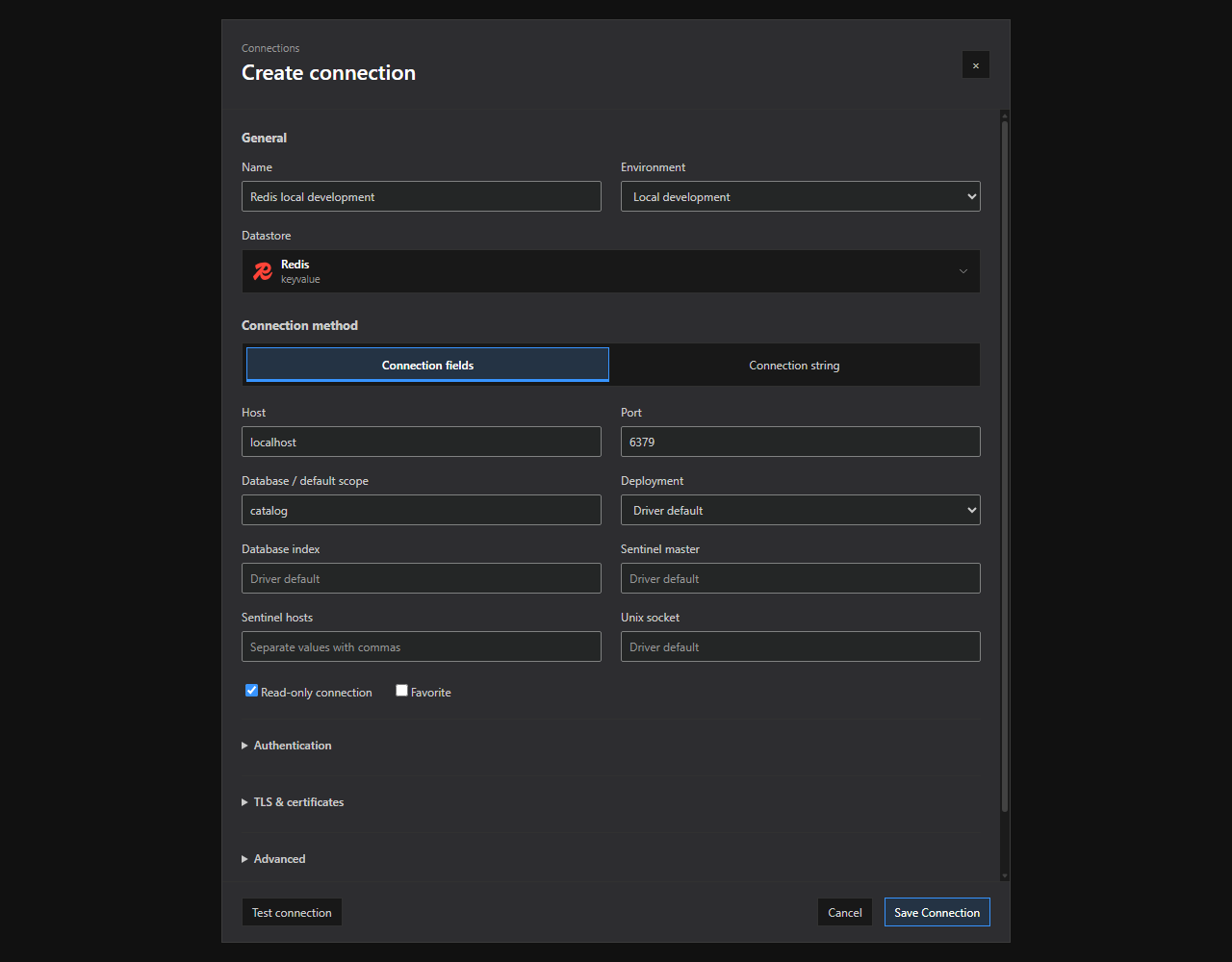

    Redis connection setup. The Redis connection dialog with supported method tabs and illustrative, non-secret settings. Expand optional sections and review runtime limitations before saving.
    Redis connection setup. The Redis connection dialog with supported method tabs and illustrative, non-secret settings. Expand optional sections and review runtime limitations before saving. Open full size
  3. 3

    Open the native explorer

    Use Save Connection, or Create Database and Save Connection for a new local file, then open the Redis Explorer where supported.

  4. 4

    Select a scope

    Select the database / namespace scope that should be attached to the new tab.

  5. 5

    Run a bounded read

    Open a query tab, paste the bounded read-only sample below, and choose Run or press Ctrl/Cmd+Enter.

    Redis native workflow. A representative Redis explorer and bounded read-only workflow. Replace the example objects with names from your datastore.
    Redis native workflow. A representative Redis explorer and bounded read-only workflow. Replace the example objects with names from your datastore. Open full size
  6. 6

    Inspect the result

    Inspect Results, Messages, History, and Details; dock the panel on the bottom or right as needed.

  7. 7

    Export when needed

    Export only the required rows after reviewing format, destination, and redaction options.

  8. 8

    Open diagnostics or transfers

    Open Diagnostics or Transfers from the drawer/status bar and treat disabled reasons as capability boundaries, not transient errors.

Connection fields

FieldRequiredPurposeSafe example
NameYesA clear profile name, without credentials.Redis development
Connection methodYesChoose a supported tab. The fields below apply only to the selected method and deployment.Connection fields / Connection string
EnvironmentNoAttach the intended variable and safety context.Local development
Read-only connectionNoEnable for initial exploration. This does not make pre-release software safe for production workloads.Enabled
Host / PortNoEndpoint for a fields-based connection. Follow the selected deployment and runtime limitations; MongoDB SRV does not use an explicit port.localhost / engine default
Database / default scopeNoInitial scope for browsing, where supported.catalog
Complete connection stringYesRequired in Connection string mode only. Saved unchanged as one vault secret with Save Connection. Blank keeps an existing stored value.Paste your complete provider string; do not share it
UsernameNoAuthentication identity for the selected method.catalog_reader
PasswordNoRequired only when the chosen authentication needs it. Save Connection stores changes; blank preserves an existing value, and Reveal… explicitly discloses it.Stored in the desktop OS vault
DeploymentNoGeneral. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.standalone / tls / sentinel / unix-socket
Database indexNoGeneral. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
ProtocolNoAdvanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.resp2 / resp3
Client nameNoAdvanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Sentinel masterNoGeneral. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Sentinel hostsNoGeneral. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Sentinel usernameNoAuthentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Sentinel passwordNoAuthentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Saved with the connection
Sentinel TLSNoTLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Unix socketNoGeneral. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Use TLSNoTLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Connect timeout (ms)NoAdvanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default
Command timeout (ms)NoAdvanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.Driver default

Run the sample query

Redis read-only example
SCAN 0 MATCH sample:* COUNT 100

Explore and inspect

  • Browse logical databases, type folders, keys, TTL, memory, encoding, streams, consumer groups, Pub/Sub, ACLs, slowlog, latency, memory, clients, persistence, replication, cluster, Sentinel, Lua, functions, and module panels.
  • Inspect strings, hashes, lists, sets, sorted sets, streams, RedisJSON, TimeSeries, vector sets, TTL, memory, encoding, length, raw payloads, and before/after key metadata.

Diagnose, administer, and transfer

  • Review INFO sections, command stats, slowlog rows, latency samples, memory stats, clients, Pub/Sub, ACLs, persistence, replication, cluster, Sentinel, Lua scripts, and functions.
  • Use guarded key add/edit/delete/rename/TTL workflows, stream entry add/delete, RedisJSON path edits, TimeSeries sample edits, vector member edits, ACL reviews, slowlog, function and script panels, and cluster/Sentinel diagnostics.
  • Import — Live. Redis exports and restores explicit keys with protocol-native serialized values and TTL evidence. Formats: JSON (portable), NDJSON (portable). Destinations: local file.
  • Export — Live. Redis exports and restores explicit keys with protocol-native serialized values and TTL evidence. Formats: JSON (portable), NDJSON (portable). Destinations: local file.
  • Backup — Unavailable. This datastore has no supported in-process or server API for a full native backup artifact. Formats: Native managed backup (native). Destinations: cloud uri, server path. Full Redis backup and restore require excluded vendor tooling or storage-backend access.
  • Restore — Unavailable. This datastore has no supported in-process or server API for a full native backup artifact. Formats: Native managed backup (native). Destinations: cloud uri, server path. Full Redis backup and restore require excluded vendor tooling or storage-backend access.
Transfers Center. Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action.
Transfers Center. Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. Open full size

Capabilities and availability

CapabilityStatusNotes
Native explorerAvailableBrowse logical databases, type folders, keys, TTL, memory, encoding, streams, consumer groups, Pub/Sub, ACLs, slowlog, latency, memory, clients, persistence, replication, cluster, Sentinel, Lua, functions, and module panels.
Read queriesAvailableStart in key browser mode with pattern/type filters, tree/list views, scan progress, Scan more, and refresh; switch to Redis console for precise commands.
Inline editingUnavailableUse a reviewed statement or the engine-native tool instead.
Diagnostics / administrationGuardedUse guarded key add/edit/delete/rename/TTL workflows, stream entry add/delete, RedisJSON path edits, TimeSeries sample edits, vector member edits, ACL reviews, slowlog, function and script panels, and cluster/Sentinel diagnostics.
Import / export / transferGuardedAvailability follows the authoritative runtime transfer manifest and shows a disabled reason when execution is not implemented.

Safety and limitations

Troubleshooting

SymptomResolution
Test connection fails or times outVerify endpoint, port, TLS mode, proxy settings, service health, firewall rules, and network access. Keep the profile unsaved until the test explains the failure.
Explorer branches are empty or disabledConfirm the selected database / namespace, refresh the branch, and grant the minimum metadata permissions described in the connection warning.
Run, edit, admin, or transfer is disabledRead the visible disabled reason. Select a compatible target, turn off read-only only when authorized, or use the documented preview/export fallback.
The sample query fails or returns different columnsReplace the example names with objects from your Redis datastore, confirm the selected database / namespace, and keep the query bounded while you validate the result.
