Warehouse and analytical

ClickHouse

ClickHouse is documented as a warehouse-style SQL surface with MergeTree, query-log, cluster, TTL, optimize, freeze, metrics, and import/export previews.

Available for HTTP SQL and transfers12 minDesktop

Prerequisites

Install the current DataPad++ desktop pre-release on Windows, macOS, or Linux.
Have the endpoint, database file, or cloud account details for a ClickHouse datastore you are authorized to use. Start with least-privileged, read-only access.
Keep an independent backup before enabling edits, administration, restore, or transfer execution.

Connect and run a safe query

1
Create the connection
Open Library, choose Create connection, and select ClickHouse and a supported Connection method tab.
2
Test and save
Complete the applicable fields and enable Read-only connection. Test connection when available; new local files and pending secondary credential changes must be saved first. Review runtime limitations and warnings.

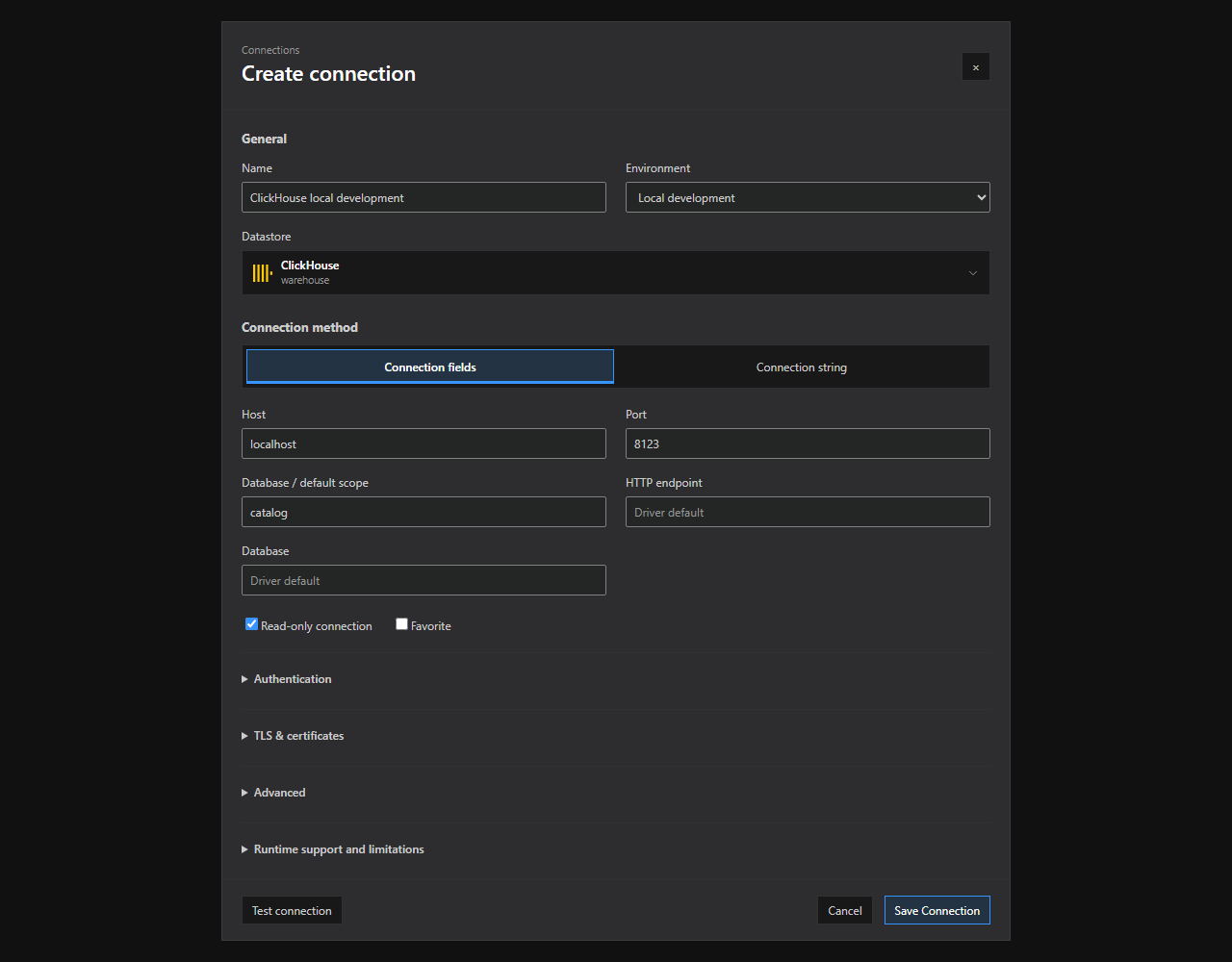

ClickHouse connection setup. The ClickHouse connection dialog with supported method tabs and illustrative, non-secret settings. Expand optional sections and review runtime limitations before saving. Open full size
3
Open the native explorer
Use Save Connection, or Create Database and Save Connection for a new local file, then open the ClickHouse Explorer where supported.
4
Select a scope
Select the database / schema scope that should be attached to the new tab.
5
Run a bounded read
Open a query tab, paste the bounded read-only sample below, and choose Run or press Ctrl/Cmd+Enter.

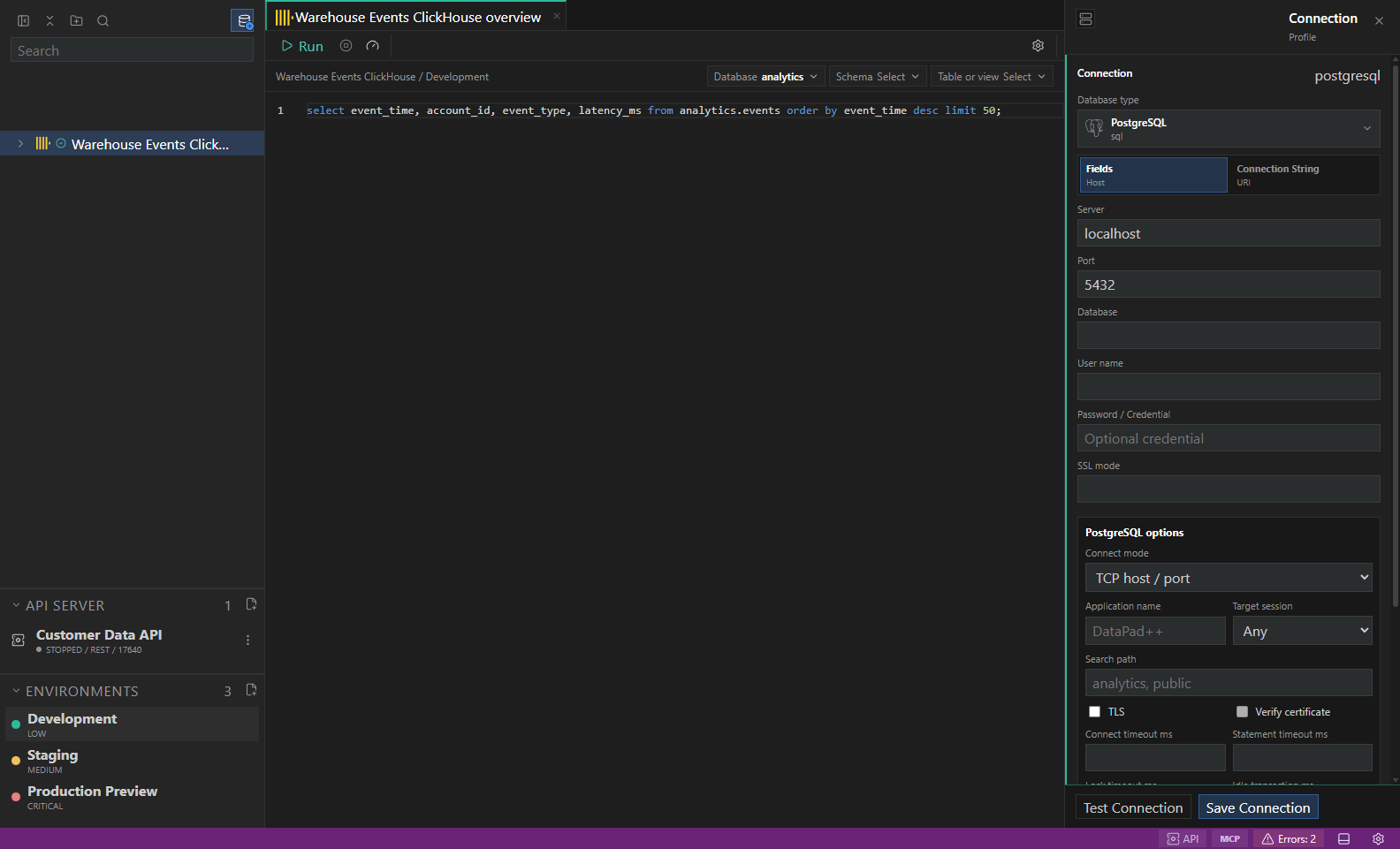

ClickHouse native workflow. A representative ClickHouse explorer and bounded read-only workflow. Replace the example objects with names from your datastore. Open full size
6
Inspect the result
Inspect Results, Messages, History, and Details; dock the panel on the bottom or right as needed.
7
Export when needed
Export only the required rows after reviewing format, destination, and redaction options.
8
Open diagnostics or transfers
Open Diagnostics or Transfers from the drawer/status bar and treat disabled reasons as capability boundaries, not transient errors.

Connection fields

Field	Required	Purpose	Safe example
Name	Yes	A clear profile name, without credentials.	ClickHouse development
Connection method	Yes	Choose a supported tab. The fields below apply only to the selected method and deployment.	Connection fields / Connection string
Environment	No	Attach the intended variable and safety context.	Local development
Read-only connection	No	Enable for initial exploration. This does not make pre-release software safe for production workloads.	Enabled
Host / Port	No	Endpoint for a fields-based connection. Follow the selected deployment and runtime limitations; MongoDB SRV does not use an explicit port.	localhost / engine default
Database / default scope	No	Initial scope for browsing, where supported.	catalog
Complete connection string	Yes	Required in Connection string mode only. Saved unchanged as one vault secret with Save Connection. Blank keeps an existing stored value.	Paste your complete provider string; do not share it
Username	No	Authentication identity for the selected method.	catalog_reader
Password	No	Required only when the chosen authentication needs it. Save Connection stores changes; blank preserves an existing value, and Reveal… explicitly discloses it.	Stored in the desktop OS vault
HTTP endpoint	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Database	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Path prefix	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Use TLS	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Verify certificates	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
CA certificate	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Client certificate	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Client key	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Query timeout (ms)	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default

Run the sample query

ClickHouse read-only example

SELECT event_time, event_name, user_id
FROM analytics.events
ORDER BY event_time DESC
LIMIT 100;

Explore and inspect

Browse databases, schemas, tables, views, MergeTree parts, replicas, dictionaries, clusters, query logs, TTL posture, access, metrics, and diagnostics.
Inspect analytical grids, query-log rows, MergeTree part details, replica posture, metrics payloads, raw JSON/text, and cost or scan warnings.

Diagnose, administer, and transfer

Review system query logs, MergeTree parts, replicas, cluster posture, storage, compute, access, metrics, TTL state, and query cost or scan posture.
Preview OPTIMIZE, TTL materialization, FREEZE snapshots, table clone/copy, access changes, query cancellation, import/export, and cluster-sensitive operations.
Import — Live. ClickHouse streams native SELECT FORMAT and INSERT FORMAT payloads through its HTTP interface. Imports require an existing empty table so the fail-safe conflict policy cannot append to existing data. Formats: CSVWithNames (native), TabSeparatedWithNames (native), JSONEachRow (native), Parquet (native). Destinations: local file.
Export — Live. ClickHouse streams native SELECT FORMAT and INSERT FORMAT payloads through its HTTP interface. Imports require an existing empty table so the fail-safe conflict policy cannot append to existing data. Formats: CSVWithNames (native), TabSeparatedWithNames (native), JSONEachRow (native), Parquet (native). Destinations: local file.
Backup — Live. ClickHouse creates native database archives in the configured server backup directory and restores them into a new isolated database. Formats: ClickHouse backup archive (native). Destinations: server path.
Restore — Live. ClickHouse creates native database archives in the configured server backup directory and restores them into a new isolated database. Formats: ClickHouse backup archive (native). Destinations: server path.

Transfers Center. Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. — **Transfers Center.** Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. Open full size

Capabilities and availability

Capability	Status	Notes
Native explorer	Available	Browse databases, schemas, tables, views, MergeTree parts, replicas, dictionaries, clusters, query logs, TTL posture, access, metrics, and diagnostics.
Read queries	Available	Run scoped ClickHouse SQL, SELECT builders, deterministic SQL IntelliSense, bounded query starts, dry-run style previews, and table-focused reads.
Inline editing	Unavailable	Use a reviewed statement or the engine-native tool instead.
Diagnostics / administration	Guarded	Preview OPTIMIZE, TTL materialization, FREEZE snapshots, table clone/copy, access changes, query cancellation, import/export, and cluster-sensitive operations.
Import / export / transfer	Guarded	Availability follows the authoritative runtime transfer manifest and shows a disabled reason when execution is not implemented.

Safety and limitations

Troubleshooting

Symptom	Resolution
Test connection fails or times out	Verify endpoint, port, TLS mode, proxy settings, service health, firewall rules, and network access. Keep the profile unsaved until the test explains the failure.
Explorer branches are empty or disabled	Confirm the selected database / schema, refresh the branch, and grant the minimum metadata permissions described in the connection warning.
Run, edit, admin, or transfer is disabled	Read the visible disabled reason. Select a compatible target, turn off read-only only when authorized, or use the documented preview/export fallback.
The sample query fails or returns different columns	Replace the example names with objects from your ClickHouse datastore, confirm the selected database / schema, and keep the query bounded while you validate the result.
