Graph

Amazon Neptune

Amazon Neptune runs Gremlin and openCypher through the AWS Neptune Data SDK and signs SPARQL with SigV4, while explicit custom endpoints can use unsigned HTTP.

Available for AWS IAM queries; some cloud diagnostics are limited12 minDesktop

Prerequisites

Install the current DataPad++ desktop pre-release on Windows, macOS, or Linux.
Have the endpoint, database file, or cloud account details for a Amazon Neptune datastore you are authorized to use. Start with least-privileged, read-only access.
Keep an independent backup before enabling edits, administration, restore, or transfer execution.

Connect and run a safe query

1
Create the connection
Open Library, choose Create connection, and select Amazon Neptune and a supported Connection method tab.
2
Test and save
Complete the applicable fields and enable Read-only connection. Test connection when available; new local files and pending secondary credential changes must be saved first. Review runtime limitations and warnings.

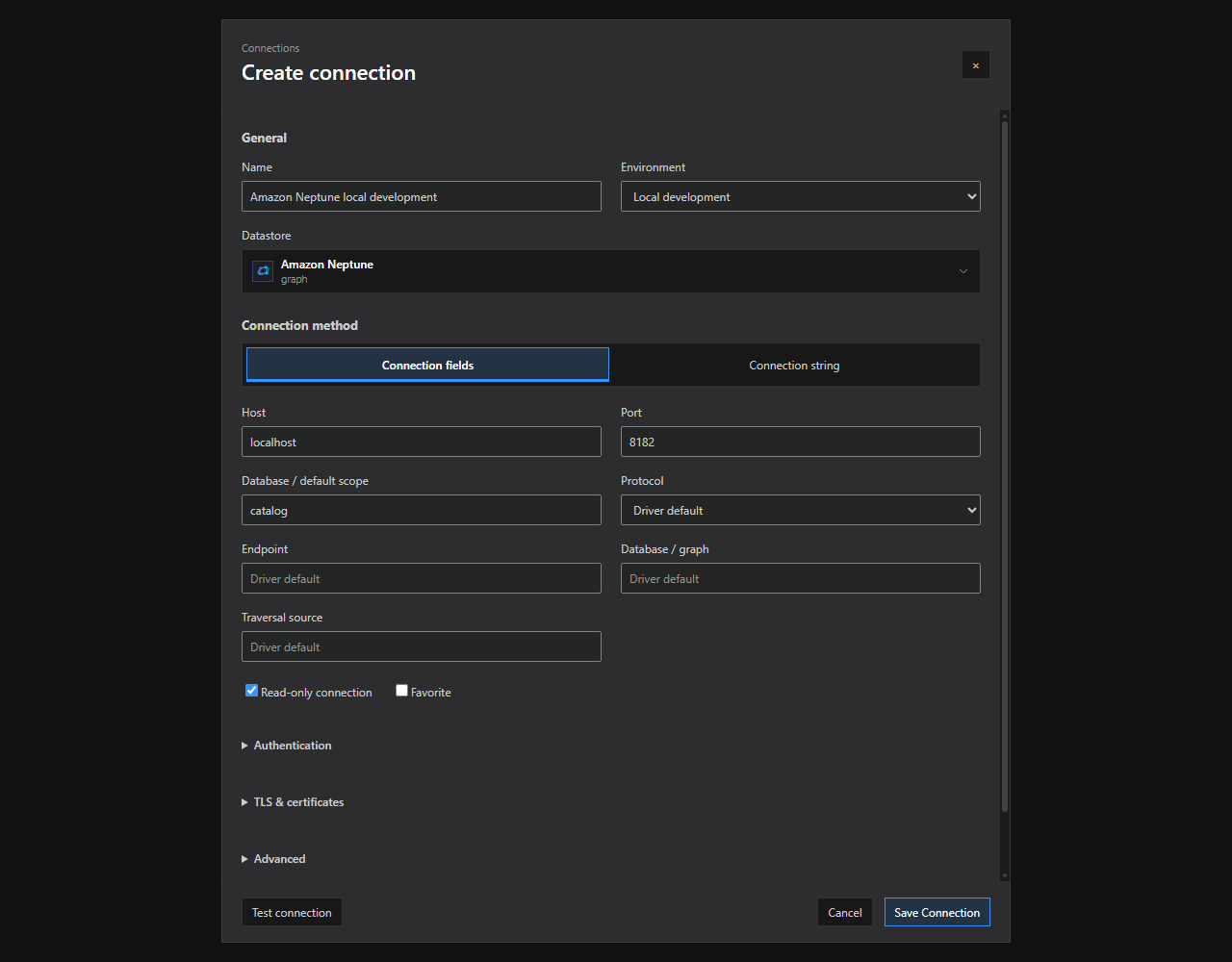

Amazon Neptune connection setup. The Amazon Neptune connection dialog with supported method tabs and illustrative, non-secret settings. Expand optional sections and review runtime limitations before saving. Open full size
3
Open the native explorer
Use Save Connection, or Create Database and Save Connection for a new local file, then open the Amazon Neptune Explorer where supported.
4
Select a scope
Select the graph / database scope that should be attached to the new tab.
5
Run a bounded read
Open a query tab, paste the bounded read-only sample below, and choose Run or press Ctrl/Cmd+Enter.

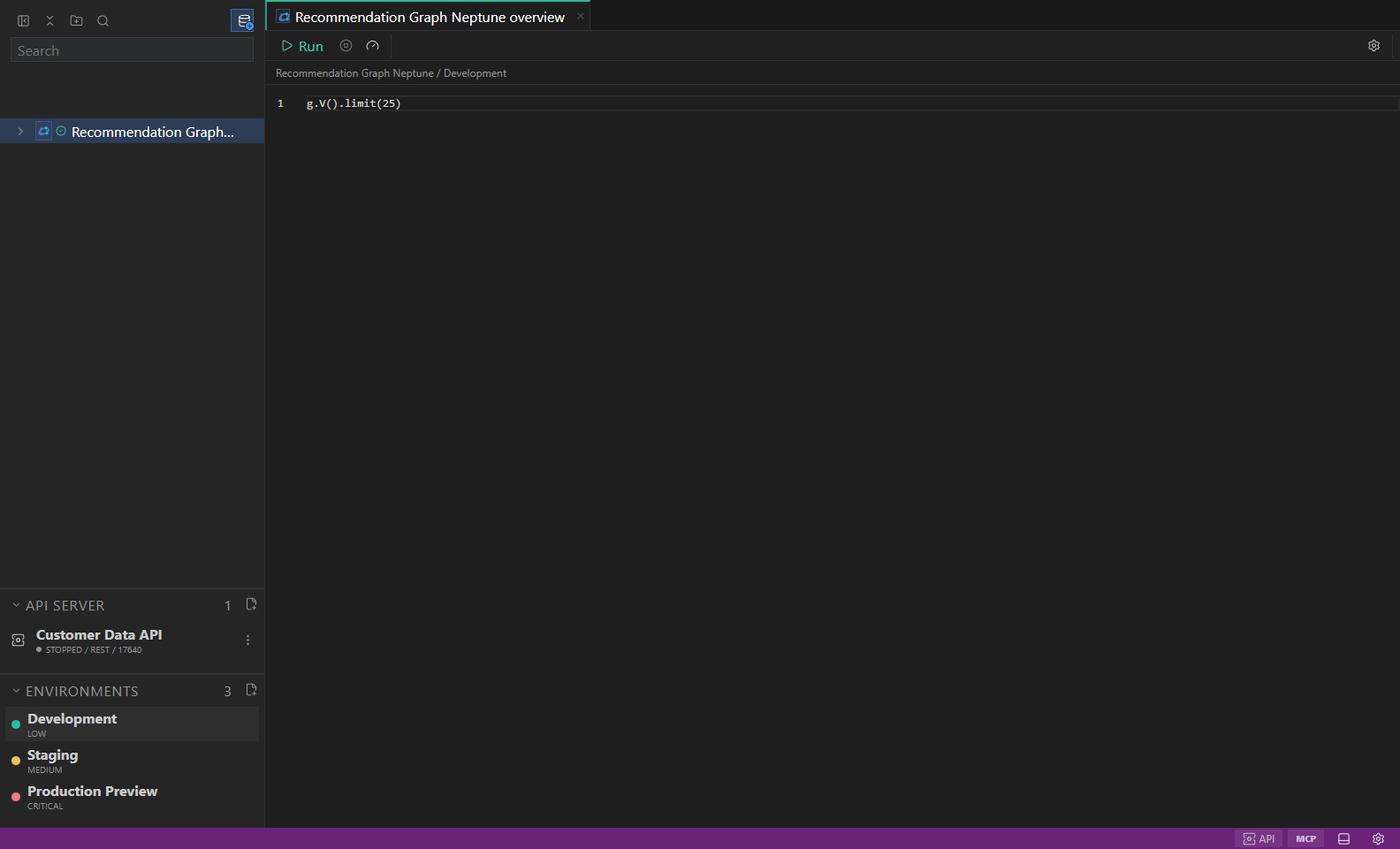

Amazon Neptune native workflow. A representative Amazon Neptune explorer and bounded read-only workflow. Replace the example objects with names from your datastore. Open full size
6
Inspect the result
Inspect Results, Messages, History, and Details; dock the panel on the bottom or right as needed.
7
Export when needed
Export only the required rows after reviewing format, destination, and redaction options.
8
Open diagnostics or transfers
Open Diagnostics or Transfers from the drawer/status bar and treat disabled reasons as capability boundaries, not transient errors.

Connection fields

Field	Required	Purpose	Safe example
Name	Yes	A clear profile name, without credentials.	Amazon Neptune development
Connection method	Yes	Choose a supported tab. The fields below apply only to the selected method and deployment.	Connection fields / Connection string
Environment	No	Attach the intended variable and safety context.	Local development
Read-only connection	No	Enable for initial exploration. This does not make pre-release software safe for production workloads.	Enabled
Host / Port	No	Endpoint for a fields-based connection. Follow the selected deployment and runtime limitations; MongoDB SRV does not use an explicit port.	localhost / engine default
Database / default scope	No	Initial scope for browsing, where supported.	catalog
Complete connection string	Yes	Required in Connection string mode only. Saved unchanged as one vault secret with Save Connection. Blank keeps an existing stored value.	Paste your complete provider string; do not share it
Username	No	Authentication identity for the selected method.	catalog_reader
Password	No	Required only when the chosen authentication needs it. Save Connection stores changes; blank preserves an existing value, and Reveal… explicitly discloses it.	Stored in the desktop OS vault
Protocol	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	neptune-http / neptune-iam
AWS region	No	Authentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
AWS profile	No	Authentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Endpoint	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Database / graph	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Traversal source	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Path prefix	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Use TLS	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Verify certificates	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
CA certificate	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Client certificate	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Client key	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Connect timeout (ms)	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Query timeout (ms)	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default

Run the sample query

Amazon Neptune read-only example

SELECT ?product ?name
WHERE { ?product a :Product ; :name ?name . }
LIMIT 25

Explore and inspect

Browse graph names, labels, relationship types, properties, indexes, constraints where available, access/IAM posture, metrics, and diagnostics.
Inspect graph rows, paths, node/edge properties, raw JSON, CloudWatch-style metrics, profile payloads, and access diagnostic panels.

Diagnose, administer, and transfer

Review metrics, IAM/access posture, endpoint health, traversal posture, profile boundaries, CloudWatch-style payloads, and SigV4 disabled reasons.
Preview access checks, metrics review, explain/profile, index/constraint-like operations where supported, and graph import/export workflows.
Import — Plan only. Neptune imports through its S3 bulk loader and exports bounded graph queries. Formats: GraphSON (native), RDF (native), CSV (portable-lossy). Destinations: cloud uri. Live Neptune transfer requires a SigV4-authenticated S3 bulk-loader runtime and opt-in validation against a real Neptune cluster.
Export — Plan only. Neptune imports through its S3 bulk loader and exports bounded graph queries. Formats: GraphSON (native), RDF (native), CSV (portable-lossy). Destinations: cloud uri. Live Neptune transfer requires a SigV4-authenticated S3 bulk-loader runtime and opt-in validation against a real Neptune cluster.
Backup — Plan only. Neptune uses managed cluster snapshots and restore. Formats: Native managed backup (native). Destinations: managed restore, cloud uri. Neptune snapshot and restore require a SigV4-authenticated control-plane runtime, an isolated destination cluster, and opt-in validation against a real AWS account.
Restore — Plan only. Neptune uses managed cluster snapshots and restore. Formats: Native managed backup (native). Destinations: managed restore, cloud uri. Neptune snapshot and restore require a SigV4-authenticated control-plane runtime, an isolated destination cluster, and opt-in validation against a real AWS account.

Transfers Center. Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. — **Transfers Center.** Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. Open full size

Capabilities and availability

Capability	Status	Notes
Native explorer	Available	Browse graph names, labels, relationship types, properties, indexes, constraints where available, access/IAM posture, metrics, and diagnostics.
Read queries	Available	Run Gremlin, openCypher, and SPARQL with language-specific live metadata, bounded normalized graph results, guarded mutations, and profile requests.
Inline editing	Unavailable	Use a reviewed statement or the engine-native tool instead.
Diagnostics / administration	Guarded	Preview access checks, metrics review, explain/profile, index/constraint-like operations where supported, and graph import/export workflows.
Import / export / transfer	Guarded	Availability follows the authoritative runtime transfer manifest and shows a disabled reason when execution is not implemented.

Safety and limitations

Troubleshooting

Symptom	Resolution
Test connection fails or times out	Verify endpoint, port, TLS mode, proxy settings, service health, firewall rules, and network access. Keep the profile unsaved until the test explains the failure.
Explorer branches are empty or disabled	Confirm the selected graph / database, refresh the branch, and grant the minimum metadata permissions described in the connection warning.
Run, edit, admin, or transfer is disabled	Read the visible disabled reason. Select a compatible target, turn off read-only only when authorized, or use the documented preview/export fallback.
The sample query fails or returns different columns	Replace the example names with objects from your Amazon Neptune datastore, confirm the selected graph / database, and keep the query bounded while you validate the result.
