SQL and relational

Oracle

Oracle 19c+ uses a bundled managed driver for live SQL and PL/SQL, schema and package inspection, DBMS output, plans, and guarded writes.

Available12 minDesktop

Prerequisites

Install the current DataPad++ desktop pre-release on Windows, macOS, or Linux.
Have the endpoint, database file, or cloud account details for a Oracle datastore you are authorized to use. Start with least-privileged, read-only access.
Keep an independent backup before enabling edits, administration, restore, or transfer execution.

Connect and run a safe query

1
Create the connection
Open Library, choose Create connection, and select Oracle and a supported Connection method tab.
2
Test and save
Complete the applicable fields and enable Read-only connection. Test connection when available; new local files and pending secondary credential changes must be saved first. Review runtime limitations and warnings.

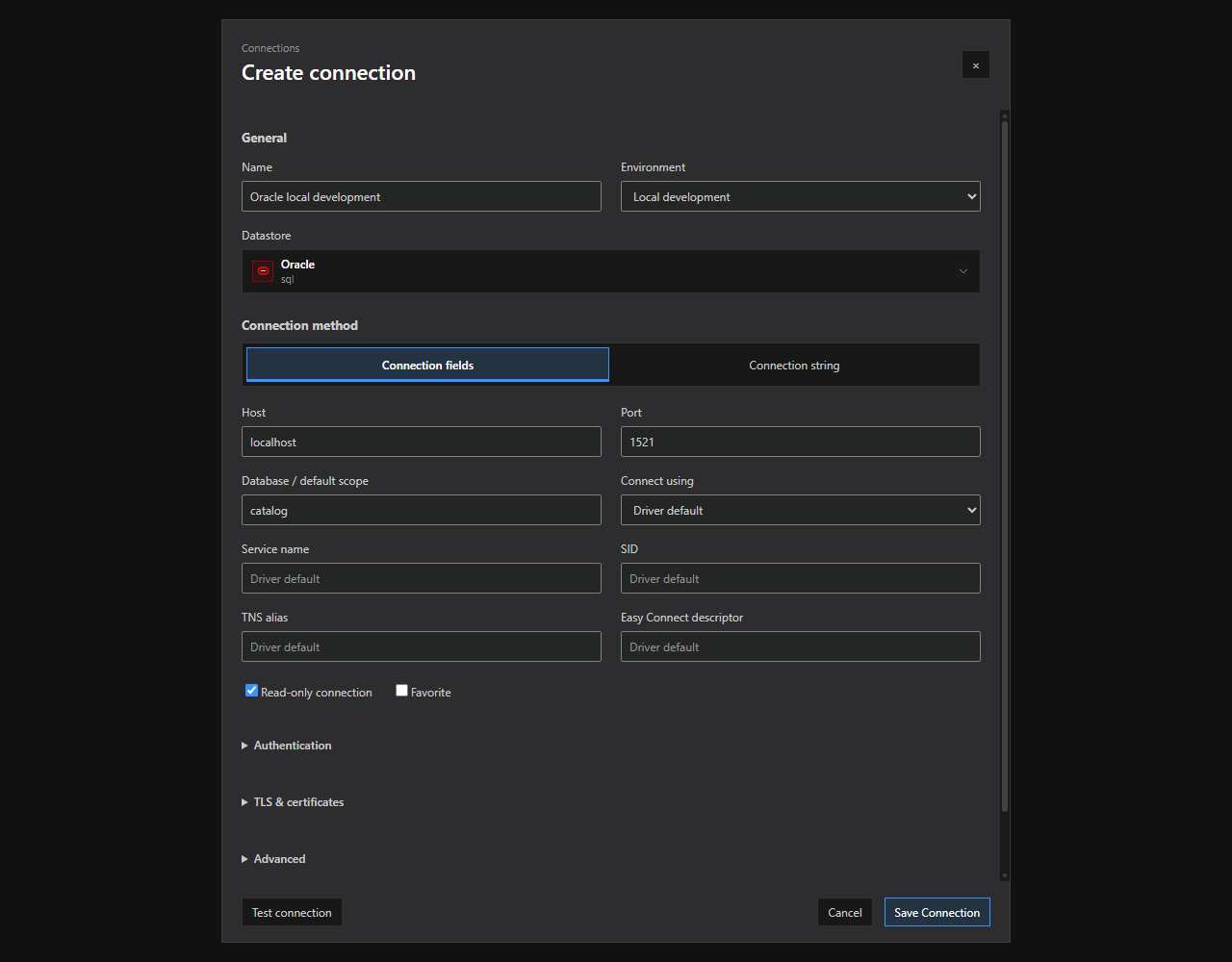

Oracle connection setup. The Oracle connection dialog with supported method tabs and illustrative, non-secret settings. Expand optional sections and review runtime limitations before saving. Open full size
3
Open the native explorer
Use Save Connection, or Create Database and Save Connection for a new local file, then open the Oracle Explorer where supported.
4
Select a scope
Select the database / schema scope that should be attached to the new tab.
5
Run a bounded read
Open a query tab, paste the bounded read-only sample below, and choose Run or press Ctrl/Cmd+Enter.
Oracle native workflow. A representative Oracle explorer and bounded read-only workflow. Replace the example objects with names from your datastore. Open full size
6
Inspect the result
Inspect Results, Messages, History, and Details; dock the panel on the bottom or right as needed.
7
Export when needed
Export only the required rows after reviewing format, destination, and redaction options.
8
Open diagnostics or transfers
Open Diagnostics or Transfers from the drawer/status bar and treat disabled reasons as capability boundaries, not transient errors.

Connection fields

Field	Required	Purpose	Safe example
Name	Yes	A clear profile name, without credentials.	Oracle development
Connection method	Yes	Choose a supported tab. The fields below apply only to the selected method and deployment.	Connection fields / Connection string
Environment	No	Attach the intended variable and safety context.	Local development
Read-only connection	No	Enable for initial exploration. This does not make pre-release software safe for production workloads.	Enabled
Host / Port	No	Endpoint for a fields-based connection. Follow the selected deployment and runtime limitations; MongoDB SRV does not use an explicit port.	localhost / engine default
Database / default scope	No	Initial scope for browsing, where supported.	catalog
Complete connection string	Yes	Required in Connection string mode only. Saved unchanged as one vault secret with Save Connection. Blank keeps an existing stored value.	Paste your complete provider string; do not share it
Username	No	Authentication identity for the selected method.	catalog_reader
Password	No	Required only when the chosen authentication needs it. Save Connection stores changes; blank preserves an existing value, and Reveal… explicitly discloses it.	Stored in the desktop OS vault
Connect using	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	service-name / sid / tns-alias / easy-connect / tcps / cloud-wallet
Service name	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
SID	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
TNS alias	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Easy Connect descriptor	No	General. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Runtime	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	managed / sqlplus / contract
Role	No	Authentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	default / sysdba / sysoper / sysbackup / sysdg / syskm / sysrac
Proxy user	No	Authentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Wallet folder	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
TNS admin folder	No	TLS & certificates. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Wallet password	No	Authentication. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Saved with the connection
SQL*Plus executable	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Client identifier	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Application name	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Edition	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Statement cache size	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Fetch size	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Connect timeout (ms)	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default
Request timeout (ms)	No	Advanced. Optional, depending on the method and server. Review runtime limitations before overriding the driver default.	Driver default

Run the sample query

Oracle read-only example

SELECT customer_id, customer_name, status
FROM customers
ORDER BY customer_id
FETCH FIRST 25 ROWS ONLY

Explore and inspect

Browse live schemas, tables and columns, views, materialized views, packages and routines, types, sequences, synonyms, links, constraints, indexes, triggers, storage, security, performance, and permission-aware dictionary details.
Inspect table, JSON, raw status, affected-row, multiple-result, DBMS output, DBMS_XPLAN, profile, package metadata, and edit-evidence views.

Diagnose, administer, and transfer

Review DBMS_XPLAN, SQL Monitor availability, PL/SQL compile diagnostics, storage posture, security posture, restricted dictionary warnings, and row identity checks.
Preview schema/package operations, storage and security reviews, import/export plans, RMAN boundary plans, and restore-sensitive workflows.
Import — Live. Oracle streams CSV through the bundled managed driver and imports into an existing empty table with array binding and exact column validation. Formats: CSV (portable-lossy). Destinations: local file.
Export — Live. Oracle streams CSV through the bundled managed driver and imports into an existing empty table with array binding and exact column validation. Formats: CSV (portable-lossy). Destinations: local file.
Backup — Live. Oracle uses DBMS_DATAPUMP for table and schema archives. Formats: Oracle Data Pump (native). Destinations: server path.
Restore — Live. Oracle uses DBMS_DATAPUMP for table and schema archives. Formats: Oracle Data Pump (native). Destinations: server path.

Transfers Center. Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. — **Transfers Center.** Transfers Center shows a failed example transfer with its warning count, failure detail, retry control, and dismiss action. Open full size

Capabilities and availability

Capability	Status	Notes
Native explorer	Available	Browse live schemas, tables and columns, views, materialized views, packages and routines, types, sequences, synonyms, links, constraints, indexes, triggers, storage, security, performance, and permission-aware dictionary details.
Read queries	Available	Run SQL, DML, DDL, MERGE, procedure calls, transaction control, and multi-statement PL/SQL scripts, with bounded reads, DBMS output, explain, and profile results.
Inline editing	Guarded	Requires key evidence, a writable profile, and environment confirmation.
Diagnostics / administration	Guarded	Preview schema/package operations, storage and security reviews, import/export plans, RMAN boundary plans, and restore-sensitive workflows.
Import / export / transfer	Guarded	Availability follows the authoritative runtime transfer manifest and shows a disabled reason when execution is not implemented.

Safety and limitations

Troubleshooting

Symptom	Resolution
Test connection fails or times out	Verify endpoint, port, TLS mode, proxy settings, service health, firewall rules, and network access. Keep the profile unsaved until the test explains the failure.
Explorer branches are empty or disabled	Confirm the selected database / schema, refresh the branch, and grant the minimum metadata permissions described in the connection warning.
Run, edit, admin, or transfer is disabled	Read the visible disabled reason. Select a compatible target, turn off read-only only when authorized, or use the documented preview/export fallback.
The sample query fails or returns different columns	Replace the example names with objects from your Oracle datastore, confirm the selected database / schema, and keep the query bounded while you validate the result.
